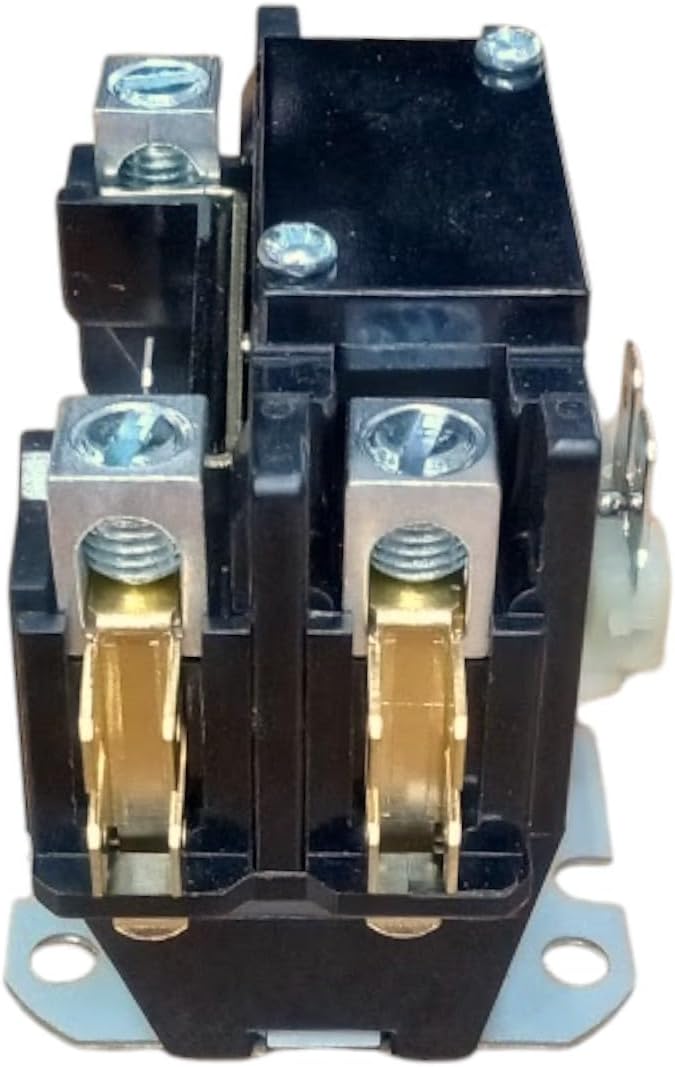

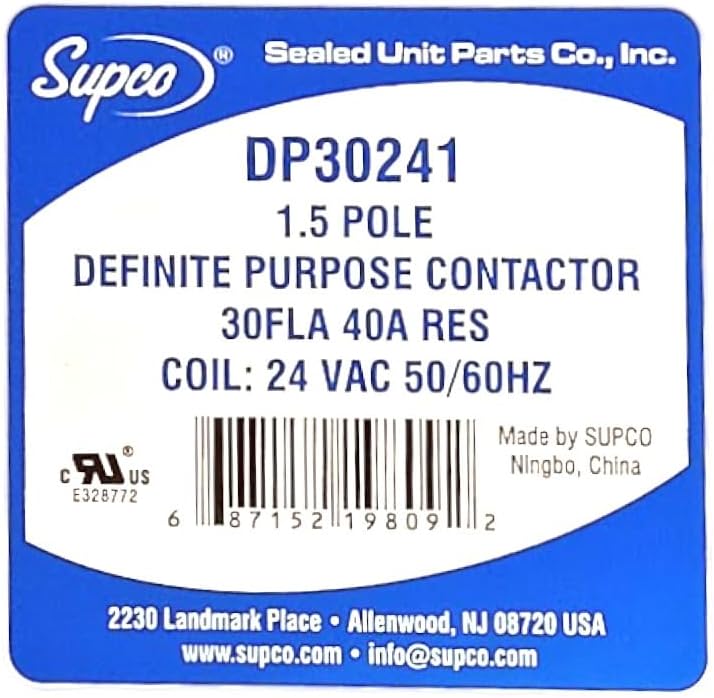

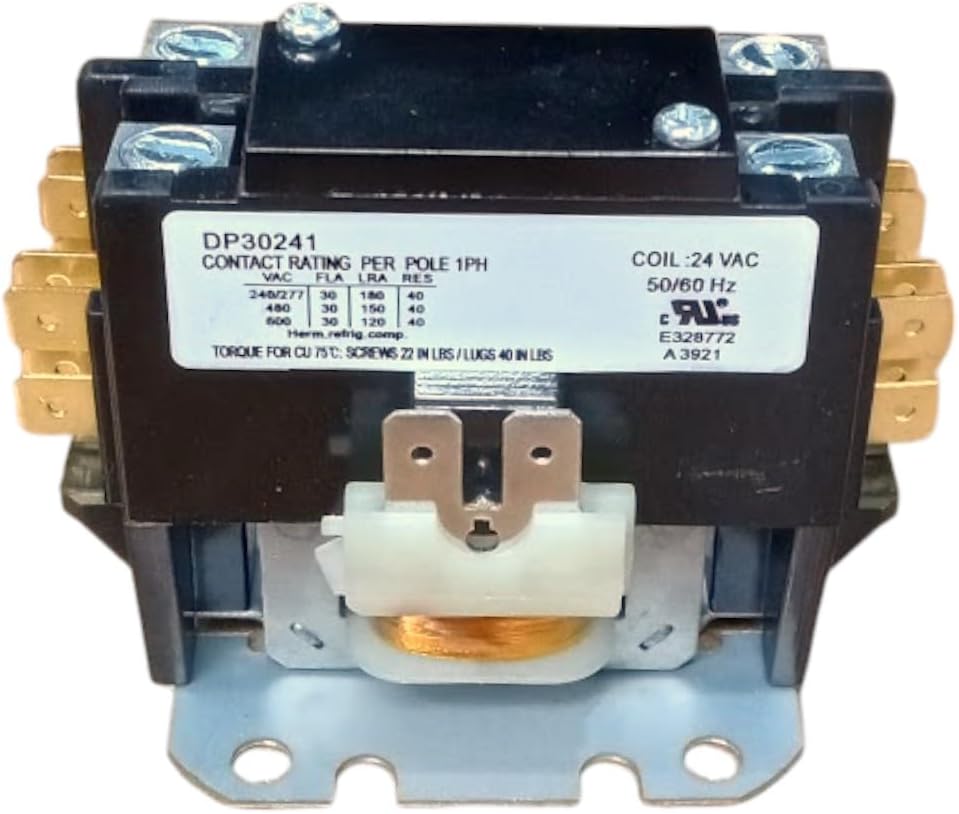

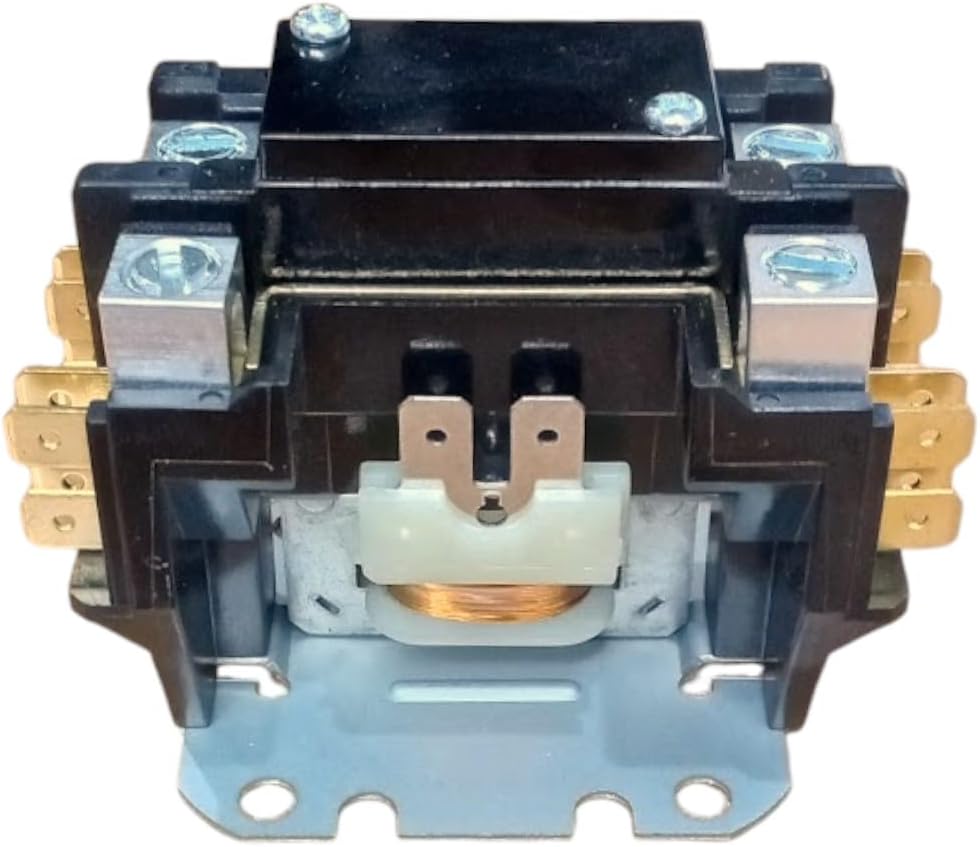

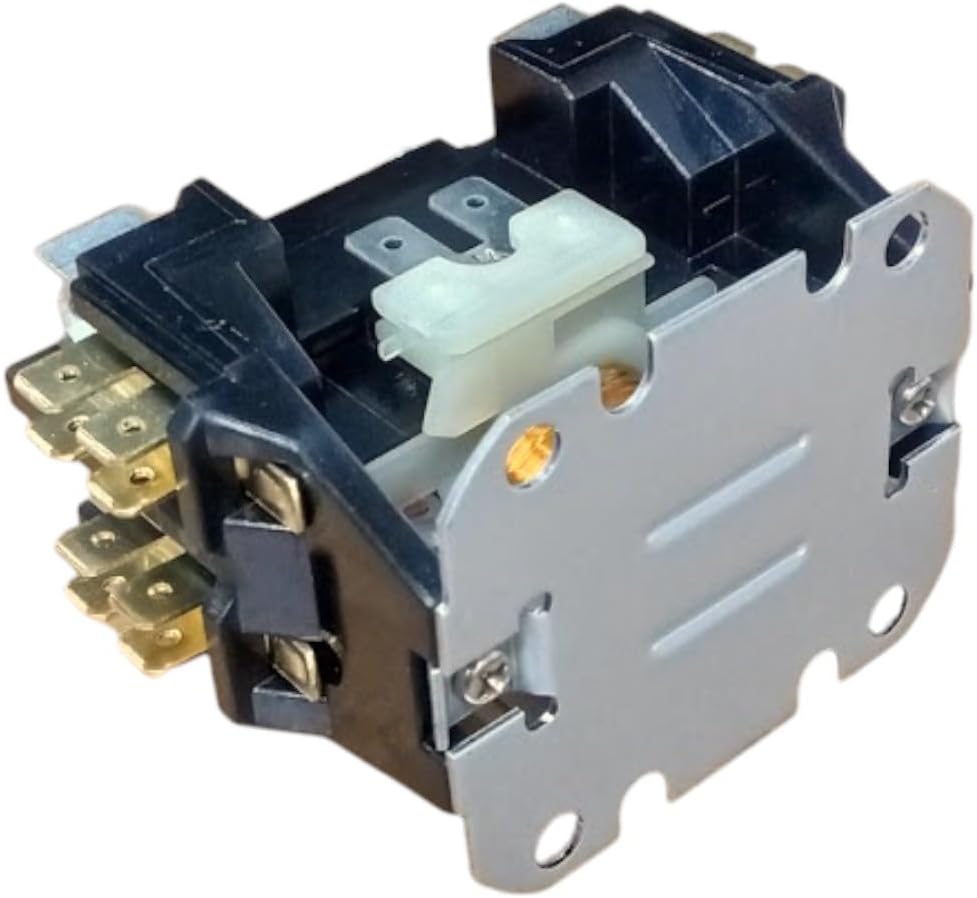

Supco Contactor part number DP30241Supco contactors are designed for use in HVAC&R systems. Compact universal design allows replacement of the most common brands. Low drop out voltage makes them ideal for any air conditioning, heating and refrigeration applications.
30 FLA, 40 RLA24V Coil1.5 Pole
Features/Benefits

• Silver cadmium oxide contacts
• Interchangeable mounting with many competitive contactors
• Space saving dimensions allow for smaller panels and more wiring room
• CSA approved
• UL approved

• Termination Torque: 22-inch pounds
• Termination: 10-32 Screws
• Full load amps: 30 FLA
• Coil voltage: 24V
• Number of poles: 1.5 Pole
• Resistive Load Amperage (RLA): 40A
• Temperature range: -40 to 150 degrees F (-40 to 65 C)

• Furnas: 45EG10AJA
• Cutler Hammer: 4143, C25CNB130T
• Arrow Hart: C301NU10
• GE: CR353CD3AH1, CR453CC3HAA
