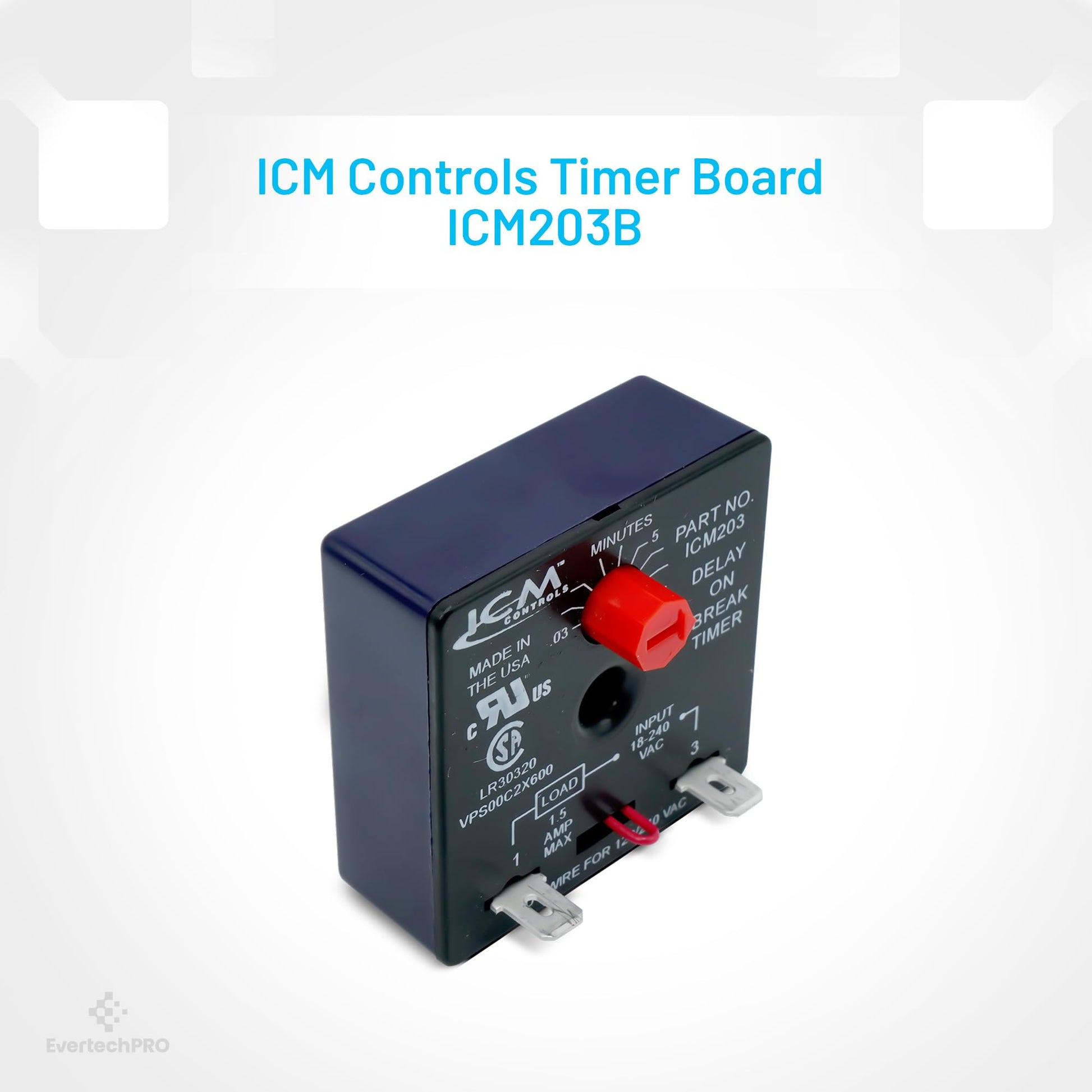

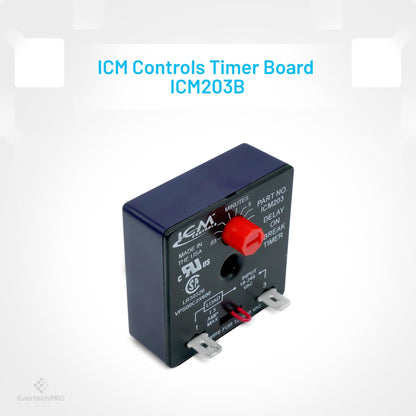

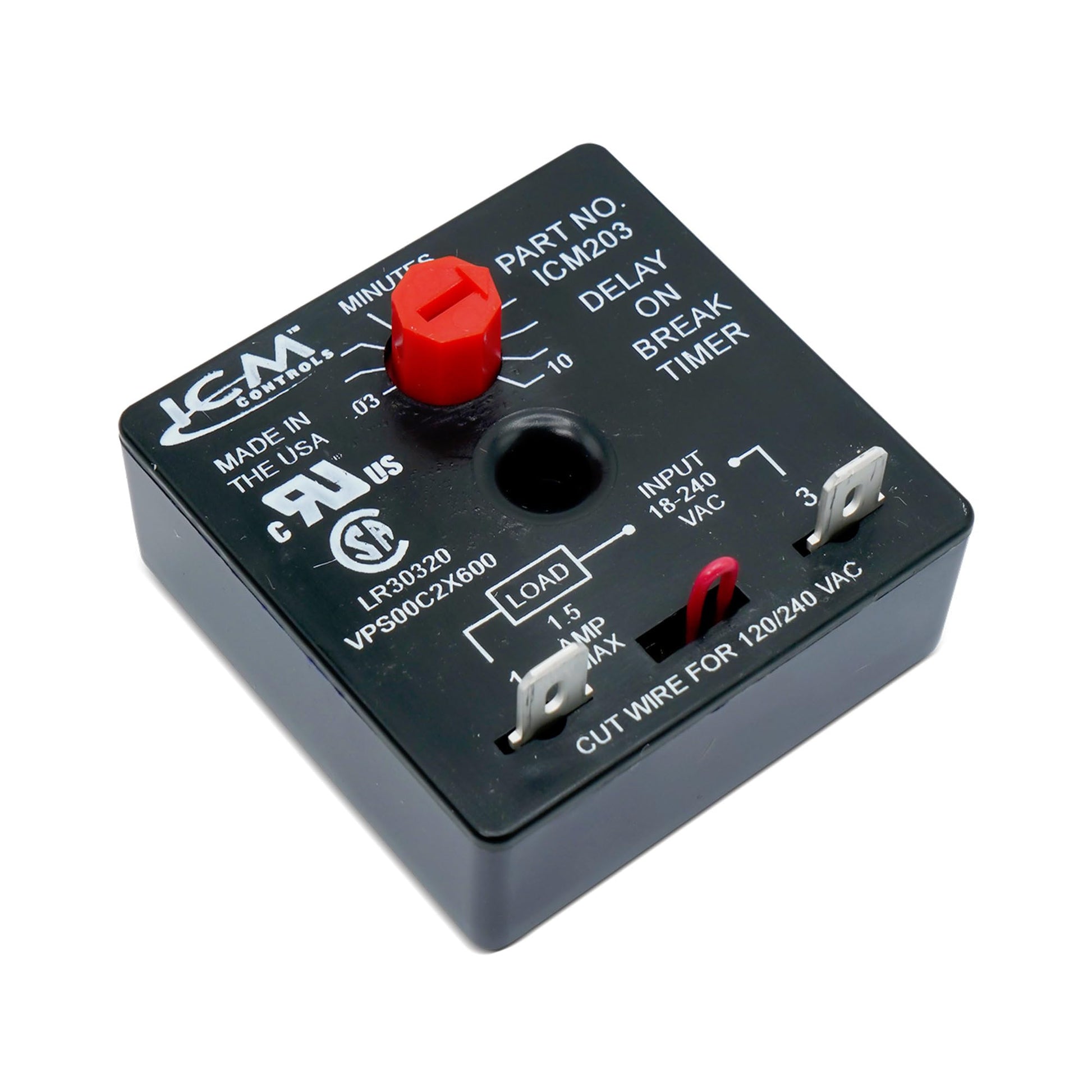

EvertechPRO HVAC Replacement Time Delay On Make Timers Part Number EP-ICM203 replaces ICM203, EAC-501-ADJ, AC-503, 32001, 32387, 32392, 3310-072, TD72, TD73, ADB-1
This is not a Universal OEM product. Fits Universal HVAC. Use of the Manufacturers trade names and logos are the registered trademarks of their respective owners. Any use of the Manufacturers brand name, part numbers or model designation for this product is made solely for purposes of demonstrating and for identification compatibility and are displayed for descriptive purposes only. Use of them does not associated with, imply any affiliation or endorsement by any manufacturer.
- ❖ Universal voltage operation, Higher 1.5 amp power rating, Compressor lockout/anti-short cycle timer, Helps to protect compressors from damage caused by rapid short cycling
- ❖ EvertechPRO Delay on Break Timer Replacement: A-1: EAC-501-ADJ. Diversified: AC-503. Mars: 32001, 32387, 32392. Robertshaw: 3310-072. Supco: TD72, TD73. Wagner/DiversiTec: ADB-1. ICM Controls ICM203
- ❖ Durable Premium Time Delay On Make Timers is a Functional Equivalent to OEM Specifications. Brand New in Original Retail Packaging
- ❖ SPECIFICATIONS: Voltage: 18-240 VAC, 1.5 amps, 15 amp inrush. Frequency: 50/60 Hz. Knob-adjustable delays: .03-10 minimum (1.8-600 seconds). Voltage drop: 3.5 V typical, 4.5 V maximum @ 1.5 amps. Holding current minimum: 40 mA
- ❖ 1 - Year Warranty Guarantee or No Questions Asked 90 Day Return.
