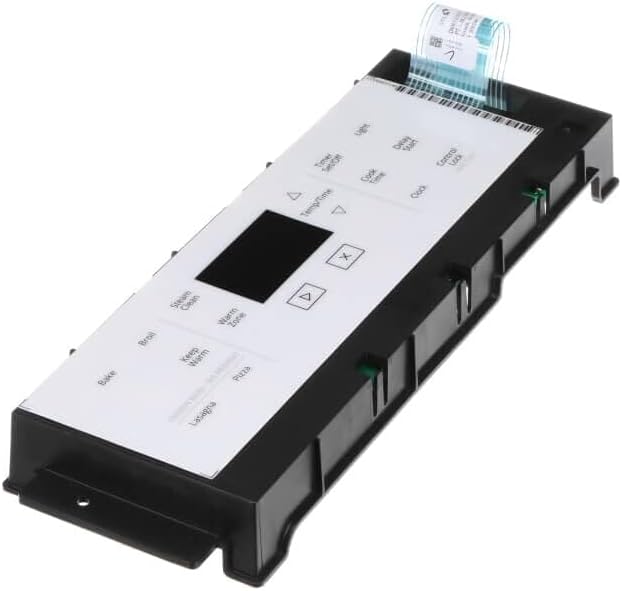

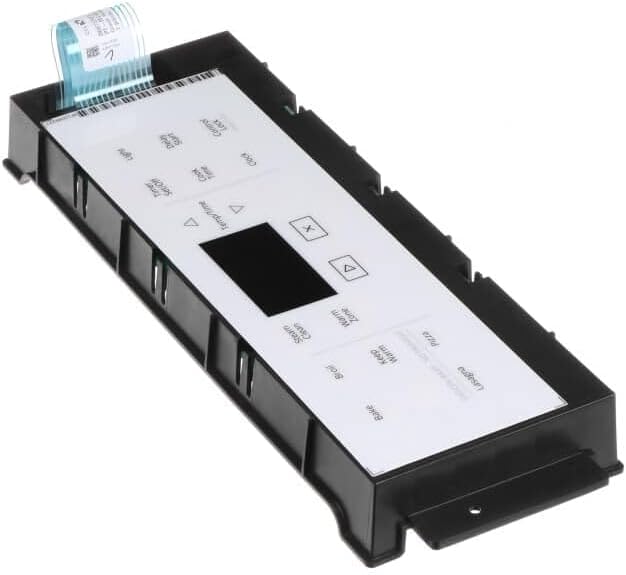

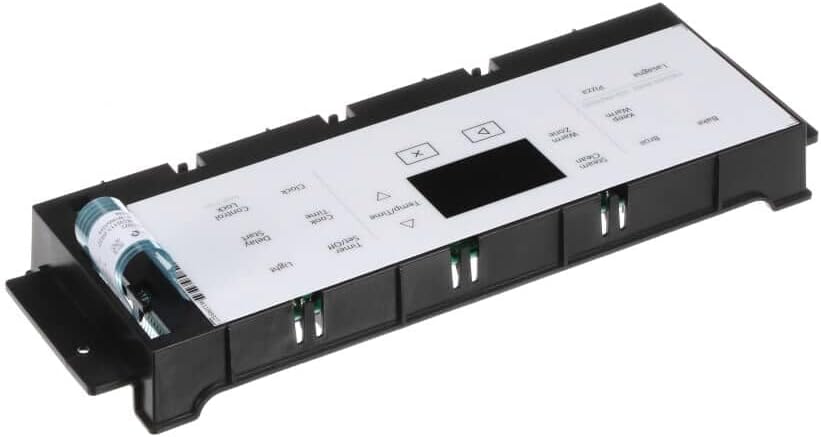

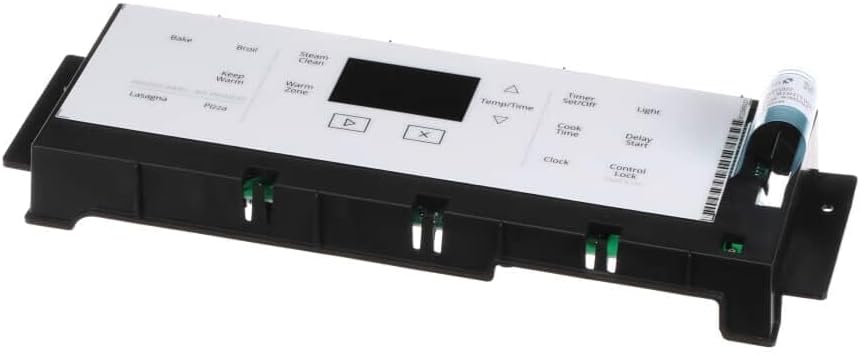

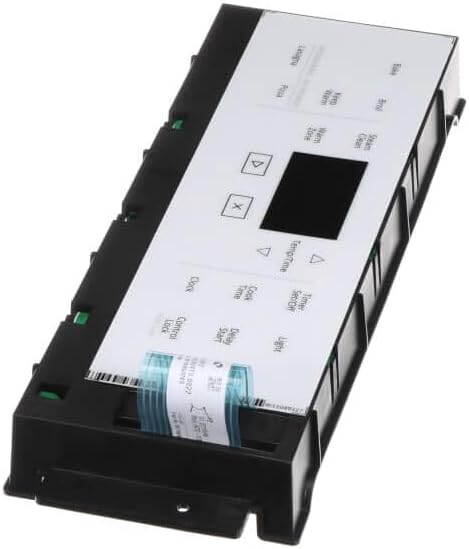

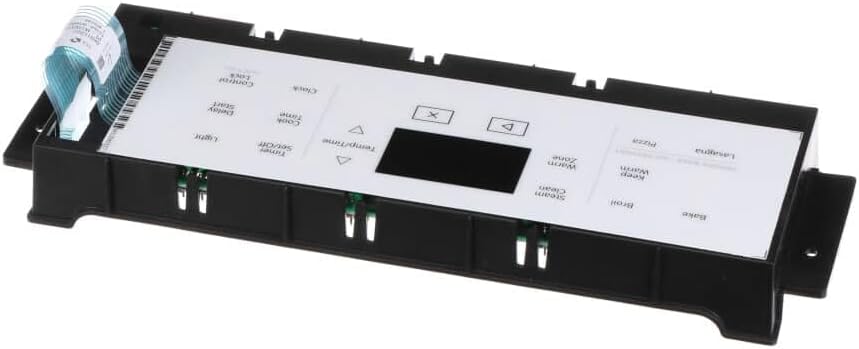

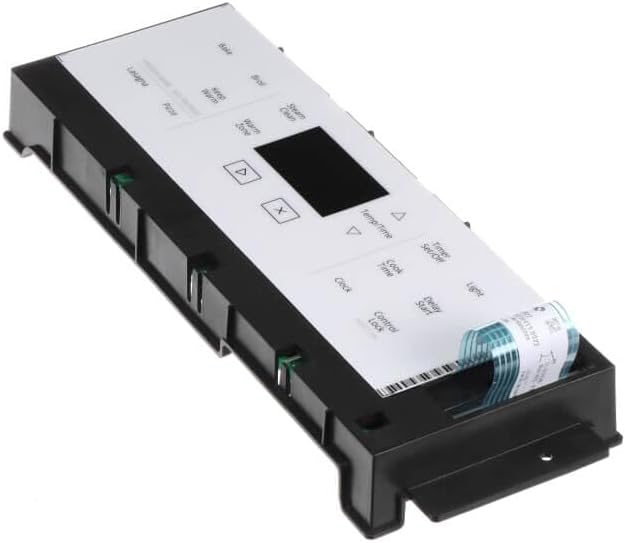

Direct Replacement for Whirlpool W11546066 Range Oven Electronic Main Control Board for Maytag, Kenmore Electric Ranges - Replaces W11428349, W11314393, W11038142, W11175526, W11204518

Direct Replacement for Whirlpool W11546066 Range Oven Electronic Main Control Board for Maytag, Kenmore Electric Ranges - Replaces W11428349, W11314393, W11038142, W11175526, W11204518

$261.20
$261.20 $261.20
Sold out
Tax included.
SUPPLYZ Range Cntrl-Elec Part Number W11314393 replaces W11204518 Fits Whirlpool Range. Whirlpool W11314393 Range Cntrl-Elec This is not a Whirlpool OEM product. Use of the Manufacturers trade names and logos...
24 people are viewing this right now

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

View full product details

SUPPLYZ Range Cntrl-Elec Part Number W11314393 replaces W11204518
Fits Whirlpool Range. Whirlpool W11314393 Range Cntrl-Elec This is not a Whirlpool OEM product. Use of the Manufacturers trade names and logos are the registered trademarks of their respective owners. Any use of the Manufacturers brand name, part numbers or model designation for this product is made solely for purposes of demonstrating and for identification compatibility and are displayed for descriptive purposes only. Use of them does not associated with, imply any affiliation or endorsement by any manufacturer.
Compatible with WFE505W0HB1 WFE505W0HB2 WFE505W0HW1 WFE505W0HW2 YWFE505W0JW0

  • RANGE SYSTEM COMPATIBILITY: Precision-engineered as a direct mechanical replacement for part number W11546066 range oven electronic main control board assembly. Custom fit for a wide selection of Whirlpool, Maytag, Amana, and Kenmore freestanding electric ranges (including popular series WFE505W0H and YWFE505W0J).
  • COMPREHENSIVE CROSS-REFERENCE: Safely updates and replaces factory original, discontinued, or legacy equipment part numbers: W11546066, W11428349, W11314393, W11038142, W11175526, W11204518, AP7019165, and PS16227092.
  • FIXES HANGING CYCLES & ERROR CODES: Coordinates and commands core cooking routines, including bake temp control, broiler element power, steam features, and timing parameters. Corrects common failures: clear-out of E1/F1 error codes, erratic baking temperatures, element staying on constantly, or a completely dead LED clock display screen.
  • HEAVY-DUTY SOLID STATE BUILD: Fabricated with reinforced circuit board traces, resilient electrical relay contacts, and high-conductivity wiring terminal connection clusters designed to reliably manage high kitchen heat loads without experiencing premature board burnout.
  • CONSOLE RETENTION DESIGN: Sized exactly to slide smoothly into the upper rear console bezel assembly frame panel with matching mounting screws and plug-and-play wiring layouts. Safety mandatory requirement: You must completely unplug the range cord or flip off your home's main 40-amp circuit breaker to eliminate all electricity before servicing the rear wire harness blocks.
